Sectional garage doors are used in construction of detached and multi-family buildings. The individual preferences of our customers are reflected by our personalized products manufactured on order. Selected colours of high-quality door panels and a wide selection of laminates of external doors allow you to create well composed colour sets that will become a showcase of the house.
Garage doors
For convenience of use, garage doors can be equipped with an automatic drive. Our offer includes automation for the doors of the leading manufacturers: Somfy, Beninca and GfA Eletromaten.
Design of sectional garage doors
Standard equipment
- Door made of 40 mm thick panels filled with polyurethane foam finished with galvanized laminated steel sheet
- Support frame – angles and guides made of galvanized steel profiles with a thickness of 2 mm
- Front torsion springs with standard number of cycles equal to 15000
- Central and side hinges made of galvanized steel sheet
Thermal conductivity
- Panels used in the production of our doors are characterized by thermal insulation parameter at the level of Ud=0.74 W/(m²*K)
Standard operating safety
Amperometric obstacle detection system – used to detect possible obstacles that may occur during the normal movement of the door. Thanks to this function, when an obstacle is encountered, the drive stops the door and changes the direction of its movement.
A safety mechanism to prevent the door from falling down in the event of a spring breakage, secure-lock panels prevent fingers from accidental pinching, profiled guides protect the rollers from falling out and the Omega trapezoid reinforcement prevents panels longer than 5m from bending.
Examples of garage door designs
Panel without embossing

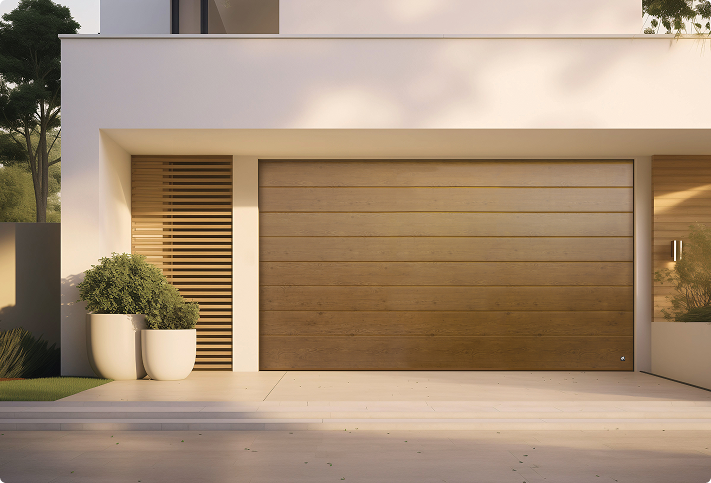

Winchester colour door

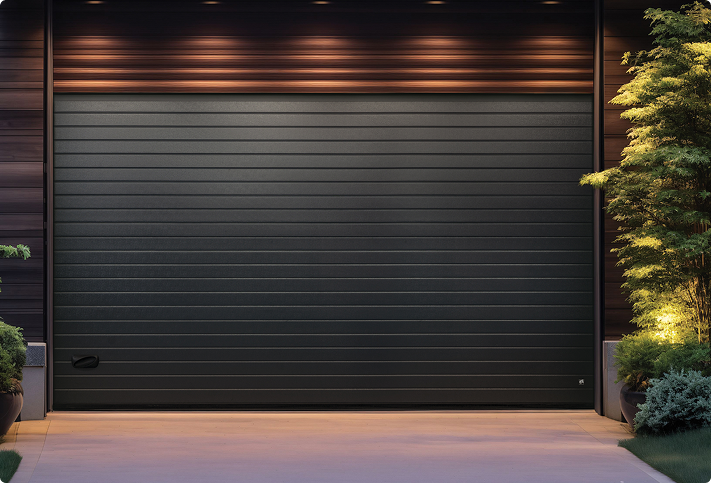

Door in dark anthracite colour
